In the industry, our professional organization is considered among the leading manufacturers of a huge series of DIN 2527 PN16 Blind Flange. The offered flanges are largely utilized in piping and plumbing systems owing to their easy assembling and disassembling of pipes. These are manufactured and designed under the supervision of proficient experts using the excellent quality basic material and updated technology. Available in various models and dimensions, these DIN 2527 PN16 Blind Flange are offered at customer-centric prices.

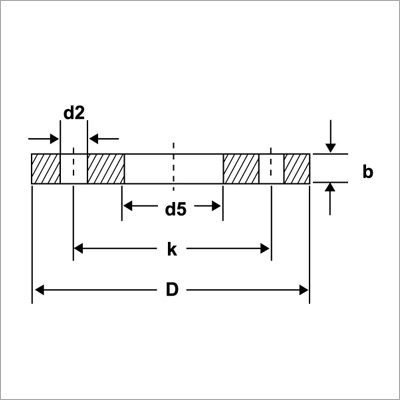

Technical Specification :
DIN 2527 PN6 (in mm) |
DIN 2527 PN10 (in mm) |
||||||||||||
Nominal Pipe Size |
Flange Dia |
Thk of Flange |
Dia of Bolt Circle |
No. of |
Dia of Bolt Holes |
|
Nominal Pipe Size |
Flange Dia |
Thk of Flange |
Dia of Bolt Circle |
No. of |
Dia of Bolt Holes |
|
DIN |
D |
B |
K |
holes |
D2 |
KG |
DIN |
D |
B |
K |
holes |
D2 |
KG |
10 |
75 |
12 |
50 |
4 |
11 |
0.38 |
10 |
90 |
14 |
60 |
4 |
14 |
0.63 |
15 |
80 |
12 |
55 |
4 |
11 |
0.44 |
15 |
95 |
14 |
65 |
4 |
14 |
0.71 |
20 |
90 |
14 |
65 |
4 |
11 |
0.66 |
20 |
105 |
16 |
75 |
4 |
14 |
1.01 |
25 |
100 |
14 |
75 |
4 |
11 |
0.82 |
25 |
115 |
16 |
85 |
4 |
14 |
1.23 |
32 |
120 |
14 |
90 |
4 |
14 |
1.18 |
32 |
140 |
16 |
100 |
4 |
18 |
1.81 |
40 |
130 |
14 |
100 |
4 |
14 |
1.39 |
40 |
150 |
16 |
110 |
4 |
18 |
2.09 |
50 |
140 |
14 |
110 |
4 |
14 |
1.62 |
50 |
165 |
18 |
125 |
4 |
18 |
2.88 |
65 |
160 |
14 |
130 |
4 |
14 |
2.14 |
65 |
185 |
18 |
145 |
4 |
18 |
3.65 |
80 |
190 |
16 |
150 |
4 |
48 |
3.43 |
80 |
200 |
20 |
160 |
4 |
18 |
4.61 |
100 |
210 |
16 |
170 |
4 |
18 |
4.22 |
100 |
220 |
20 |
180 |
4 |
18 |
5.65 |
125 |
240 |
18 |
200 |
8 |
18 |
6.10 |
125 |
250 |
22 |
210 |
8 |
18 |
8.13 |
150 |
265 |
18 |
225 |
8 |
18 |
7.51 |
150 |
285 |
22 |
240 |
8 |
22 |
10.49 |
175 |
295 |
20 |
255 |
8 |
18 |
10.41 |
175 |
315 |
24 |
270 |
8 |
22 |
14.11 |
200 |
320 |
20 |
280 |
8 |
18 |
12.31 |
200 |
340 |
24 |
295 |
8 |
22 |
16.53 |
250 |
375 |
22 |
335 |
12 |
18 |
18.55 |
250 |
395 |
26 |
350 |
12 |
22 |
24.08 |
300 |
440 |
22 |
395 |
12 |
22 |
25.47 |
300 |
445 |
26 |
400 |
12 |
22 |
30.81 |
350 |
490 |
22 |
445 |
12 |
22 |
31.78 |
350 |
505 |
26 |
460 |
12 |
22 |
39.64 |
400 |
540 |
22 |
495 |
16 |
22 |
38.50 |
400 |
565 |
26 |
515 |
16 |
26 |
49.44 |
500 |
645 |
24 |
600 |
20 |
22 |
60.13 |
500 |
670 |
28 |
620 |
20 |
26 |
75.16 |
600 |
755 |
28 |
705 |
20 |
26 |
96.07 |
600 |
780 |
30 |
725 |
20 |
30 |
109.20 |
700 |
860 |
30 |
810 |
24 |
26 |
133.80 |
700 |
895 |
32 |
840 |
24 |
30 |
153.77 |
800 |
975 |
32 |
920 |
24 |
30 |
183.29 |
800 |
1015 |
36 |
950 |
24 |
33 |
222.86 |
900 |
1075 |
36 |
1020 |
24 |
30 |
251.70 |
900 |
1115 |
40 |
1050 |
24 |
33 |
299.08 |
1000 |
1175 |
42 |
1120 |
28 |
30 |
350.98 |
1000 |
1230 |
46 |
1160 |
28 |
36 |
418.78 |
