Butt Weld Equal Tee And Cap-Stub End

Get a Price/Quote

Product Details:

Features Premium Quality
Material Stainless Steel
Standard ASTM
Outer Diameter 1/2 Millimeter (mm)
Usage Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Butt Weld Equal Tee And Cap-Stub End Price And Quantity

Minimum Order Quantity 100 Piece

Butt Weld Equal Tee And Cap-Stub End Product Specifications

Features Premium Quality
Material Stainless Steel
Usage Industrial
Standard ASTM
Outer Diameter 1/2 Millimeter (mm)

Butt Weld Equal Tee And Cap-Stub End Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Dimensions of Buttweld Fittings (ANSI B 16.9) (in mm)
	O.D.			Cap			Equal Tee
Nom. Pipe Size	D			E			C			M
	Min	Nom	Max	Min	Nom	Max	Min	Nom	Max	Min	Nom	Max
1/2''	20	21	22	21	25	29	23	25	27	23	25	27
3/4''	26	27	28	21	25	29	27	29	31	27	29	31
1''	32	33	34	34	38	42	36	38	40	36	38	40
1 1/4''	41	42	43	34	38	42	46	48	50	46	48	50
1 1/2''	47	48	49	34	38	42	55	57	59	55	57	59
2''	59	60	61	34	38	42	62	64	66	62	64	66
2 1/2''	72	73	74	34	38	42	74	76	78	74	76	78
3''	88	89	90	47	51	55	84	86	88	84	86	88
4''	113	114	116	60	64	68	103	105	107	103	105	107
5''	140	141	144	69	76	83	122	124	126	122	124	126
6''	167	168	171	82	89	96	141	143	145	141	143	145
8''	217	219	221	95	102	109	176	178	180	176	178	180
10''	270	273	277	120	127	134	214	216	218	214	216	218
12''	321	324	328	145	152	159	251	254	257	251	254	257
14''	353	356	360	158	165	172	276	279	282	276	279	282
16''	403	406	410	171	178	185	302	305	308	302	305	308
18''	454	457	461	196	203	210	340	343	346	340	343	346
20''	503	508	514	222	229	236	378	381	384	378	381	384
24''	605	610	616	260	267	274	429	432	435	429	432	435

Dimensions of Buttweld Stubends (ANSI B 16.9 & MSS SP 43) (in mm)
	O.D.			Stubend		B 16.9			MSS SP 43
Nom. Pipe Size	D			G		F			F
	Min	Nom	Max	Min	Max	Min	Nom	Max	Min	Nom	Max
1/2	20	21	22	34	35	74	76	78	49	51	53
3/4	26	27	28	42	43	74	76	78	49	51	53
1	32	33	34	50	51	100	102	104	49	51	53
1 1/4	41	42	43	63	64	100	102	104	49	51	53
1 1/2	47	48	49	72	73	100	102	104	49	51	53
2	59	60	61	91	92	150	152	154	62	64	66
2 1/2	72	73	74	104	105	150	152	154	62	64	66
3	88	89	90	126	127	150	152	154	62	64	66
4	113	114	116	156	157	150	152	154	74	76	78
5	140	141	144	185	186	201	203	205	74	76	78
6	167	168	171	215	216	201	203	205	87	89	91
8	217	219	221	269	270	201	203	205	100	102	104
10	270	273	277	322	324	252	254	256	125	127	129
12	321	324	328	379	381	252	254	256	150	152	154
14	353	356	360	411	413	302	305	308	150	152	154
16	403	406	410	468	470	302	305	308	150	152	154
18	454	457	461	531	533	302	305	308	150	152	154
20	503	508	514	582	584	302	305	308	150	152	154
24	605	610	616	690	692	302	305	308	150	152	154

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Butt Weld Pipe Fittings' category

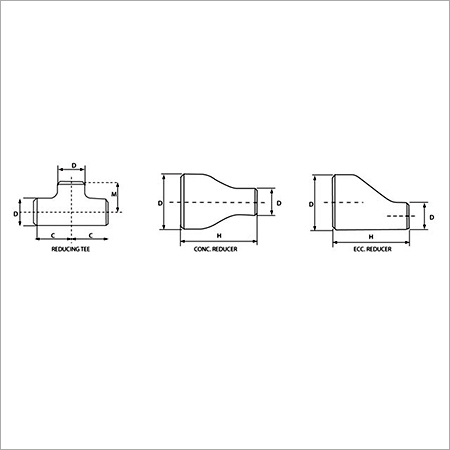

Butt Weld Reducing Tee And Reducers Minimum Order Quantity : 100 Material : Stainless Steel Features : Premium Quality Usage : Industrial Standard : ASTM Diameter : 1/2 Millimeter (mm)

Send Inquiry

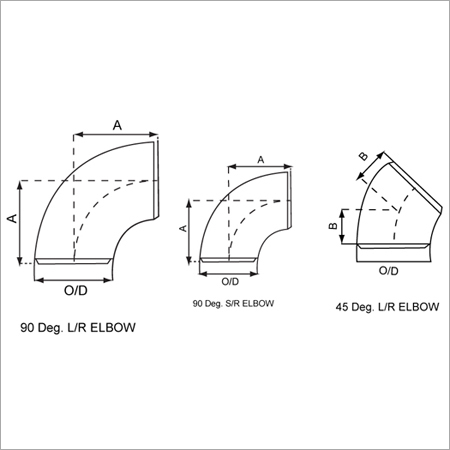

Butt Weld Bend And Elbows Minimum Order Quantity : 100 Material : Stainless Steel Features : Premium Quality Usage : Industrial Standard : ASTM Outer Diameter : 1/2 Millimeter (mm)
