BS 10 Table F & Table H

BS 10 Table F & Table H
BS 10 Table F & Table H

BS 10 Table F & Table H Specification

  • Usage
  • Industrial
  • Features
  • Premium Quality
  • Fittings
  • Flanges
  • Grade
  • Multple Grades Available
  • Surface
  • Other


BS 10 Table F & Table H Trade Information

  • Minimum Order Quantity
  • 100 Pieces
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 5000 Pieces Per Month
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India


About BS 10 Table F & Table H

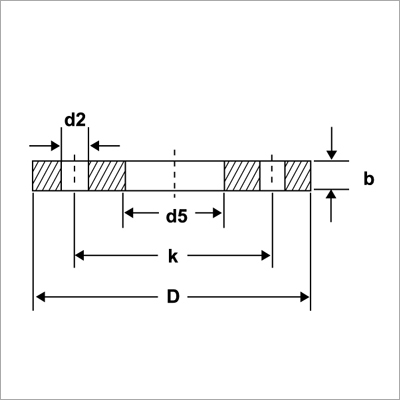

Table F for W. Steam pressure 100 Ibs per sq. inch (in inches)

Nominal

Dia of flange

I.D. of flange

Dia of bolt circle

No of

Dia of bolt holes

Thickness

Pipe size

D

d5

k

Holes

d2

b

1/2"

3.3/8"

7/8"

2.5/8

4

5/8

3/8

3/4

4"

1.3/32

2.7/8

4

5/8

3/8

1"

4.3/4

1.23/64

3.7/16

4

3/4

3/8

1.1/4

5.1/4

1.45/64

3.7/8

4

3/4

1/2

1.1/2

5.1/2

1.15/16

4.1/8

4

3/4

1/2

2

6.1/2

2.7/16

5

4

3/4

5/8

2.1/2

7.14

215/16

5.3/4

8

3/4

5/8

3

8

3.37/64

6.1/2

8

3/4

5/8

3.1/2

8.1/2

4.5/64

7

8

3/4

3/4

4

9

4.37/64

7.1/2

8

3/4

3/4

5

11

5.43/64

9.1/4

8

7/8

7/8

6

12

6.23/32

10.1/4

12

7/8

7/8

7

13.1/4

7.5/8

11.1/2

12

7/8

7/8

8

14.1/2

8.23/32

12.3/4

12

7/8

1

9

16

9.23/32

14

12

1

1.1/8

10

17

10.7/8

15

12

1

1.1/8

12

19.1/4

12.7/8

17.1/4

16

1

1.1/4

14

21.3/4

14.9/64

19.1/2

16

1.1/8

1.3/8

16

24

16.5/32

21.3/4

20

1.1/8

1.5/8

18

26.1/2

18.3/16

24

20

1.1/4

1.3/4

20

29

20.13/16

26.1/2

24

1.1/4

2

24

33.1/2

2.1/4

30.3/4

24

1.5

2.1/4

Table H for W. Steam pressure 150 Ibs and 250 Ibs per sq. inch (in inches)

Nominal

Dia of flange

I.D. of flange

Dia of bolt circle

No of

Dia of bolt holes

Thickness

Pipe size

D

d5

k

Holes

d2

b

1/2

4.1/2

7/8

3.1/4

4

5/8

1/2

3/4

41/2

1.3/32

3.1/4

4

5/8

1/2

1

4.3/4

1.23/64

3.7/16

4

3/4

9/16

1.1/4

5.1/4

1.45/64

3.7/8

4

3/4

11/16

1.1/2

5.1/2

1.15/16

4.1/8

4

3/4

11/16

2

6.1/2

2.7/16

5

4

3/4

3/4

2.1/2

7.14

215/16

5.3/4

8

3/4

3/4

3

8

3.37/64

6.1/2

8

3/4

7/8

3.1/2

8.1/2

4.5/64

7

8

3/4

7/8

4

9

4.37/64

7.1/2

8

3/4

1

5

11

5.43/64

9.1/4

8

7/8

1.1/8

6

12

6.23/32

10.1/4

12

7/8

1.1/8

7

13.1/4

7.5/8

11.1/2

12

7/8

1.1/4

8

14.1/2

8.23/32

12.3/4

12

7/8

1.1/4

9

16

9.23/32

14

12

1

1.3/8

10

17

10.7/8

15

12

1

1.3/8

12

19.1/4

12.7/8

17.1/4

16

1

1.5/8

14

21.3/4

14.9/64

19.1/2

16

1.1/8

1.7/8

16

24

16.5/32

21.3/4

20

1.1/8

2.1/8

18

26.1/2

18.3/16

24

20

1.1/4

2.3/8

20

29

20.13/16

26.1/2

24

1.1/4

2.5/8

24

33.1/2

2.1/4

30.3/4

24

1.5

3
BS 10 Table F & Table H
  • Minimum Order Quantity
  • 100 Pieces
  • Supply Ability
  • 5000 Pieces Per Month
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India
images Get Latest Price
Request To Call Back
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in British Standard Flanges Category

BS 10 Table D and Table E

BS 10 Table D and Table E

Minimum Order Quantity : 100 Pieces

Fittings : Flanges

Features : Premium Quality

Surface : Other

Grade : Multple Grades Available

Usage : Industrial

Get a Price/Quote
