BS 10 Table D and Table E

BS 10 Table D and Table E
BS 10 Table D and Table E

BS 10 Table D and Table E Specification

  • Grade
  • Multple Grades Available
  • Fittings
  • Flanges
  • Usage
  • Industrial
  • Features
  • Premium Quality
  • Surface
  • Other


BS 10 Table D and Table E Trade Information

  • Minimum Order Quantity
  • 100 Pieces
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 5000 Pieces Per Month
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India


About BS 10 Table D and Table E

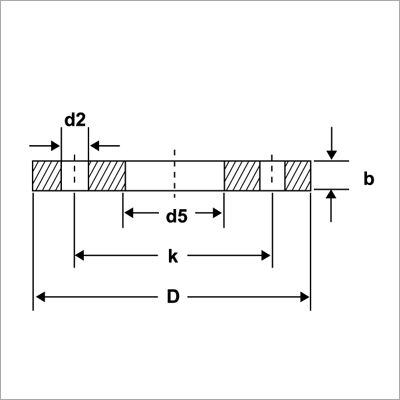

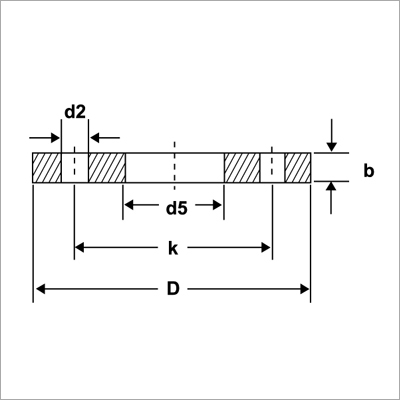

Table D for W. Steam pressure 50 Ibs per sq. inch (in inches)

Nominal

Dia of flange

I.D. of flange

Dia of bolt circle

No of

Dia of bolt holes

Thickness

Pipe size

D

d5

k

Holes

d2

b

1/2"

3.3/4"

7/8"

2.5/8"

4

5/8"

3/16"

3/4"

4"

1.3/32"

2.7/8"

4

5/8"

3/16"

1"

4.1/2"

1.23/64"

3.1/4"

4

5/8"

3/16"

1.1/4"

4.3/4"

1.45/64"

3.7/16"

4

5/8"

1/4"

1.1/2"

5.1/4"

1.15/16"

3.7/8"

4

5/8"

1/4"

2"

6"

2.7/16"

4.1/2"

4

3/4"

5/16"

2.1/2"

6.1/2"

215/16"

5"

4

3/4"

5/16"

3"

7.1/4"

3.37/64"

5.3/4"

4

3/4"

3/8"

3.1/2"

8"

4.5/64"

6.1/2"

4

3/4"

3/8"

4"

8.1/2"

4.37/64"

7"

4

3/4"

3/8"

5"

10"

5.43/64"

8.1/4"

8

3/4"

1/2"

6"

11"

6.23/32"

9.1/4"

8

3/4"

1/2"

7"

12"

7.5/8"

10.1/4"

8

3/4"

1/2"

8"

13.1/4"

8.23/32"

11.1/2"

8

3/4"

1/2"

9"

14.1/2"

9.23/32"

12.3/4"

8

3/4"

5/8"

10"

16"

10.7/8"

14"

8

7/8"

5/8"

12"

18"

12.7/8"

16"

12

7/8"

5/8"

14"

20.3/4"

14.9/64"

18.1/2"

12

1"

7/8"

16"

22.3/4"

16.5/32"

20.1/2"

12

1"

7/8"

18"

25.1/4"

18.3/16"

23"

16

1"

7/8"

20"

27.3/4"

20.13/16"

25.1/4"

16

1"

1"

24"

32.1/2"

2.1/4"

29.3/4"

16

1.1/8"

1.1/4"



Table E for W. Steam pressure 50 Ibs and 100 Ibs per sq. inch (in inches)

Nominal

Dia of flange

I.D. of flange

Dia of bolt circle

No of

Dia of bolt holes

Thickness

Pipe size

D

d5

k

Holes

d2

b

1/2"

3.3/4"

7/8"

2.5/8"

4

5/8"

1/4"

3/4"

4"

1.3/32"

2.7/8"

4

5/8"

1/4"

1"

4.1/2"

1.23/64"

3.1/4"

4

5/8"

9/32"

1.1/4"

4.3/4"

1.45/64"

3.7/16"

4

5/8"

5/16"

1.1/2"

5.1/4"

1.15/16"

3.7/8"

4

5/8"

11/32"

2"

6"

2.7/16"

4.1/2"

4

3/4"

3/8"

2.1/2"

6.1/2"

215/16"

5"

4

3/4"

13/32"

3"

7.1/4"

3.37/64"

5.3/4"

4

3/4"

7/16"

3.1/2"

8"

4.5/64"

6.1/2"

8

3/4"

15/32"

4"

8.1/2"

4.37/64"

7"

8

3/4"

1/2"

5"

10"

5.43/64"

8.1/4"

8

3/4"

9/16"

6"

11"

6.23/32"

9.1/4"

8

7/8"

11/16"

7"

12"

7.5/8"

10.1/4"

8

7/8"

3/4"

8"

13.1/4"

8.23/32"

11.1/2"

8

7/8"

3/4"

9"

14.1/2"

9.23/32"

12.3/4"

12

7/8"

13/16"

10"

16"

10.7/8"

14"

12

7/8"

7/8"

12"

18"

12.7/8"

16"

12

1"

1"

14"

20.3/4"

14.9/64"

18.1/2"

12

1"

1.1/8"

16"

22.3/4"

16.5/32"

20.1/2"

12

1"

1.1/4"

18"

25.1/4"

18.3/16"

23"

16

1"

1.3/8"

20"

27.3/4"

20.13/16"

25.1/4"

16

1"

1.1/2"

24"

32.1/2"

2.1/4"

29.3/4"

16

1.1/4"

1.7/8"
BS 10 Table D and Table E
  • Minimum Order Quantity
  • 100 Pieces
  • Supply Ability
  • 5000 Pieces Per Month
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India
