I. P. CORPORATION
Send InquiryScrewed Fittings
Screwed Fittings Specification
- Diameter
- 1/8 Inch (in)
- Features
- Premium Quality
- Material
- Stainless Steel
- Standard
- ASTM
- Usage
- Industrial
Screwed Fittings Trade Information
- Minimum Order Quantity
- 10 Pieces
- FOB Port
- INDIA
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID)
- Supply Ability
- 50000 Pieces Per Month
- Delivery Time
- 2 Days
- Sample Available
- Yes
- Packaging Details
- Standard Packing
- Main Domestic Market
- All India
About Screwed Fittings
Specification
|

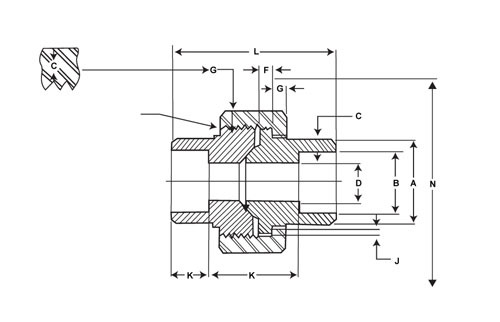

DIMENSIONS OF THREADED FITTINGS (ANSI B 16.11) (in mm) |
||||||||||||||
|
Nominal |
|
|
|
|
|
|||||||||
|
A |
C |
H |
G |
Min(1) |
||||||||||
|
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
B |
L2 |
|
|
1/8'' |
20.57 |
20.57 |
24.63 |
17.52 |
17.52 |
18.93 |
22.35 |
22.30 |
25.40 |
3.175 |
3.110 |
6.350 |
6.303 |
6.700 |
|
1/4'' |
20.57 |
24.63 |
28.44 |
17.52 |
18.93 |
22.35 |
22.35 |
25.40 |
33.20 |
3.175 |
3.302 |
6.604 |
8.128 |
10.205 |
|
3/8'' |
24.63 |
28.44 |
33.27 |
18.93 |
22.35 |
25.40 |
25.40 |
33.27 |
38.10 |
3.175 |
2.505 |
6.985 |
9.544 |
10.298 |
|
1/2'' |
28.44 |
33.27 |
38.10 |
22.45 |
25.40 |
28.44 |
33.27 |
38.10 |
45.97 |
3.175 |
4.089 |
8.153 |
10.922 |
13.555 |
|
3/4'' |
33.27 |
38.10 |
44.45 |
25.40 |
28.44 |
33.27 |
38.10 |
45.97 |
55.62 |
3.175 |
4.318 |
8.534 |
12.700 |
13.860 |
|
1'' |
38.10 |
44.45 |
50.80 |
28.44 |
33.27 |
35.05 |
45.97 |
55.62 |
61.97 |
3.688 |
4.978 |
9.931 |
14.732 |
17.343 |
|
1-1/4'' |
44.45 |
50.80 |
60.45 |
33.27 |
35.04 |
42.92 |
55.62 |
61.97 |
75.43 |
3.886 |
5.283 |
10.591 |
17.018 |
17.952 |
|
1-1/2'' |
50.80 |
60.45 |
64.02 |
35.05 |
42.92 |
43.68 |
61.97 |
75.43 |
84.07 |
4.013 |
5.562 |
11.074 |
17.780 |
18.376 |
|
2'' |
60.45 |
63.50 |
82.55 |
42.92 |
43.68 |
52.32 |
75.43 |
84.07 |
101.60 |
4.267 |
7.137 |
12.090 |
19.050 |
19.138 |
|
2-1/2'' |
76.20 |
82.55 |
95.25 |
52.37 |
52.32 |
63.50 |
91.94 |
101.60 |
120.65 |
5.613 |
7.645 |
15.290 |
23.622 |
28.905 |
|
3'' |
85.85 |
95.25 |
106.42 |
63..50 |
63.50 |
79.24 |
109.47 |
120.65 |
146.05 |
5.994 |
8.839 |
18.637 |
25.408 |
30.500 |
|
4'' |
106.42 |
114.30 |
114.30 |
78.24 |
78.24 |
79.24 |
146.05 |
152.40 |
152.40 |
6.555 |
11.669 |
18.684 |
27.777 |
33.000 |
|
DIMENSION OF COUPLINGS & CAPS (BS 3799) (in mm) |
|||||||||
|
|
|
|
|
|
|
||||
|
Nominal |
End to End |
End to End |
Outside |
End Wall |
Length of |
||||
|
|
3000 & 6000 |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
B |
L2 |
|
1/8'' |
31.8 |
19.1 |
|
15.7 |
22.4 |
4.8 |
- |
6.4 |
6.7 |
|
1/4'' |
35.1 |
25.4 |
26.9 |
19.1 |
25.4 |
4.8 |
6.4 |
8.1 |
10.2 |
|
3/8'' |
38.1 |
25.4 |
26.9 |
22.4 |
31.8 |
4.8 |
6.4 |
9.1 |
10.4 |
|
1/2'' |
47.8 |
31.8 |
33.3 |
28.4 |
38.1 |
6.4 |
7.9 |
10.9 |
13.6 |
|
3/4'' |
50.8 |
36.6 |
38.1 |
35.1 |
44.5 |
6.4 |
7.9 |
12.7 |
13.9 |
|
1'' |
60.5 |
41.1 |
42.9 |
44.5 |
57.2 |
9.7 |
11.2 |
14.7 |
17.3 |
|
1-1/4'' |
66.5 |
44.5 |
46.0 |
57.2 |
63.5 |
9.7 |
11.2 |
17.0 |
18.0 |
|
1-1/2'' |
79.2 |
44.5 |
47.8 |
63.5 |
76.2 |
11.2 |
12.7 |
17.8 |
18.4 |
|
2'' |
85.9 |
47.8 |
50.8 |
76.2 |
91.9 |
12.7 |
15.7 |
19.1 |
19.2 |
|
2-1/2'' |
91.9 |
60.5 |
63.5 |
91.9 |
108.0 |
15.7 |
19.1 |
23.6 |
28.9 |
|
3'' |
108.0 |
68.3 |
74.7 |
139.7 |
158.8 |
22.4 |
28.4 |
27.7 |
33.0 |
Price 200.0 INR/ Piece
- Minimum Order Quantity
- 10 Pieces
- Supply Ability
- 50000 Pieces Per Month
- Delivery Time
- 2 Days
- Main Domestic Market
- All India
