Class 150 Flanges
Product Details:
- Fittings Flanges
- Grade Multple Grades Available
- Features Premium Quality
- Usage Industrial
- Surface Finished
- Click to View more
X
Class 150 Flanges Price And Quantity
- 100 Piece
Class 150 Flanges Product Specifications
- Finished
- Flanges
- Multple Grades Available
- Premium Quality
- Industrial
Class 150 Flanges Trade Information
- Cash in Advance (CID)
- 5000 Piece Per Month
- 7 Days
- All India
Product Description
Supported by huge industrial knowledge, we are able to manufacture a world-class array of American Standard Class 150 Flanges. The offered widely used in several plumbing and piping systems due to their impact & pressure resistance, optimum quality and greater longevity. Made from selected carbon steel or stainless steel with the support of advanced tools & equipment, these American Standard Class 150 Flanges are tested completely by versed professionals to meet international quality standards. Available in different dimensions, these flanges are provided to clients at negotiable prices within promised time-frame by us.
Technical Specification :
|

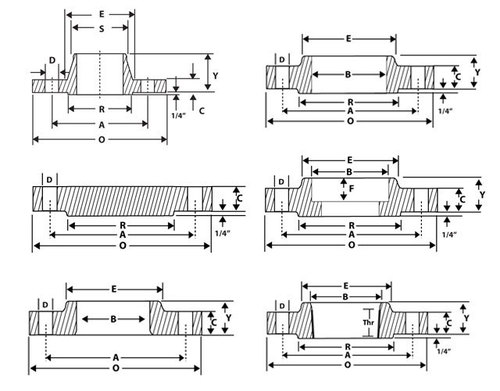

DIMENSIONS OF CLASS 150 FLANGES (ANSI B 16.5) (in mm) |
||||||||||||||||
|
Nominal |
Flange |
Dia of |
Dia of Bolt Holes |
No. of |
Thk of Flange |
Diameter at Weld Bevel |
Dia of Hub |
Length Through Hub |
Bore 'B' |
Dia of |
Depth of |
Length |
||||
|
S/O & S/W |
W/N |
L/J |
S/O & S/W |
L/J |
||||||||||||
|
1/2'' |
15 |
88.9 |
60.3 |
15.9 |
4 |
11.1 |
21.3 |
30.2 |
15.9 |
47.6 |
15.9 |
22.3 |
22.9 |
34.9 |
9.5 |
15.9 |
|
3/4'' |
20 |
98.4 |
69.8 |
15.9 |
4 |
12.7 |
26.7 |
38.1 |
15.9 |
52.4 |
15.9 |
27.7 |
28.2 |
42.9 |
11.1 |
15.9 |
|
1'' |
25 |
107.9 |
79.4 |
15.9 |
4 |
14.3 |
33.5 |
49.2 |
17.5 |
55.6 |
17.5 |
34.5 |
35.0 |
50.8 |
12.7 |
17.5 |
|
1 1/4'' |
32 |
117.5 |
88.9 |
15.9 |
4 |
15.9 |
42.2 |
58.7 |
20.6 |
57.1 |
20.6 |
43.2 |
43.7 |
63.5 |
14.3 |
20.6 |
|
1 1/2'' |
40 |
127.0 |
98.4 |
15.9 |
4 |
17.5 |
48.3 |
65.1 |
22.2 |
61.9 |
22.2 |
49.5 |
50.0 |
73.0 |
15.9 |
22.2 |
|
2'' |
50 |
152.4 |
120.6 |
19.0 |
4 |
19.0 |
60.4 |
77.8 |
25.4 |
63.5 |
25.4 |
62.0 |
62.5 |
92.1 |
17.5 |
25.4 |
|
2 1/2'' |
65 |
177.8 |
139.7 |
19.0 |
4 |
22.2 |
73.1 |
90.5 |
28.6 |
69.8 |
28.6 |
74.7 |
75.4 |
104.8 |
19.0 |
28.6 |
|
3'' |
80 |
190.5 |
152.4 |
19.0 |
4 |
23.8 |
88.9 |
107.9 |
30.2 |
69.8 |
30.2 |
90.7 |
91.4 |
127.0 |
20.6 |
30.2 |
|
3 1/2'' |
90 |
216.0 |
177.8 |
19.0 |
8 |
23.8 |
101.6 |
122.2 |
31.7 |
71.4 |
31.7 |
103.4 |
104.1 |
140.0 |
20.6 |
31.7 |
|
4'' |
100 |
228.6 |
190.5 |
19.0 |
8 |
23.8 |
114.3 |
134.9 |
33.3 |
76.2 |
33.3 |
116.1 |
116.8 |
157.2 |
23.8 |
33.3 |
|
5'' |
125 |
254.0 |
215.9 |
22.2 |
8 |
23.8 |
141.2 |
163.5 |
36.5 |
88.9 |
36.5 |
143.8 |
144.5 |
185.7 |
23.8 |
36.5 |
|
6'' |
150 |
279.4 |
241.3 |
22.2 |
8 |
25.4 |
168.4 |
192.1 |
39.7 |
88.9 |
39.7 |
170.7 |
171.4 |
215.9 |
27.0 |
39.7 |
|
8'' |
200 |
342.9 |
298.4 |
22.2 |
8 |
28.6 |
219.2 |
246.1 |
44.4 |
101.6 |
44.4 |
221.5 |
222.2 |
269.9 |
31.7 |
44.4 |
|
10'' |
250 |
406.4 |
361.9 |
25.4 |
12 |
30.2 |
273.0 |
304.8 |
49.2 |
101.6 |
49.2 |
276.3 |
277.4 |
323.8 |
33.3 |
49.2 |
|
12'' |
300 |
482.6 |
431.8 |
25.4 |
12 |
31.8 |
323.8 |
365.1 |
55.6 |
114.3 |
55.6 |
327.1 |
328.2 |
381.0 |
39.7 |
55.6 |
|
14'' |
350 |
533.4 |
476.2 |
28.6 |
12 |
34.9 |
355.6 |
400.0 |
57.1 |
127.0 |
79.4 |
359.1 |
360.2 |
412.7 |
41.3 |
57.1 |
|
16'' |
400 |
596.9 |
539.7 |
28.6 |
16 |
36.5 |
406.4 |
457.2 |
63.5 |
127.0 |
87.3 |
410.5 |
411.2 |
469.9 |
44.4 |
63.5 |
|
18'' |
450 |
635.0 |
577.8 |
31.7 |
16 |
39.7 |
457.2 |
504.8 |
68.3 |
139.7 |
96.8 |
461.8 |
462.3 |
533.4 |
49.2 |
68.3 |
|
20'' |
500 |
698.5 |
635.0 |
31.7 |
20 |
42.9 |
508.0 |
558.8 |
73.0 |
144.5 |
103.2 |
513.1 |
514.3 |
584.2 |
54.0 |
73.0 |
|
24'' |
600 |
812.8 |
749.3 |
34.9 |
20 |
47.6 |
609.6 |
663.6 |
82.5 |
152.4 |
111.1 |
615.9 |
615.9 |
692.1 |
63.5 |
82.5 |
Note : Thickness 'C' is inclusive of Raised Face Thickness of 1.65 MM. For Class 150
A class 150 flange can be created from various materials like stainless steel, carbon steel, ductile iron, cast iron, etc and is resistant to abrasion & corrosion with high durability. Flanges such as American standard flanges, British standard flanges and German standard flanges created using above mentioned materials have separate pressure ratings.
The pressure rating of flanges depends on various factors which we will look at in the following section.
Flanges are able to resist different pressure values at different & varied temperatures. With increase in temperature pressure rating of a flange decreases. Let us take an example to illustrate what happens; Class 150 flanges rates to about 270 PSIG (in ambient conditions), at 400 F a PSIG of 180, at 600 F a PSIG of 150 & 75 PSIG at 800 F. So it all depends on the fluid's operating temperature.
Different types of Class 150 Flanges:
- Welding neck flanges
- Slip on flanges
- Blind flanges
- Threaded flanges
- Lap joint flanges
- Socket weld flanges
